← Back to the lane Lane block 05 of 05

Lane Block 05 · Heat Rejection

Air-Cooled Chiller Plant

Heat rejection, packaged as a block. The chiller plant sits outside the lane, down the long side of the building, and cooling capacity arrives with the lane it serves.

Plan view of one 5 MW Hypergate lane: generator, power, space cooling and white space in a row on a common slab, with the air-cooled chiller plant outside the lane at the end

Block 05 of 05 · outside the lane

Block Specification

Serving each lane 4 chillers · 4 pump skids · 4 thermal storage tanks
Where it sits The chiller yard, outside the lane, down the long side of the building
At grade Set on pads in the open yard, nothing on the roof
Arrives as Modules piped and tested in the plant, set by crane in one piece
Schedule saved 10–12 months mechanical, groundbreaking to integrated systems test

Built by SVL Data Center Cooling

SVL (Schwab Vollhaber Lubratt) engineers mission-critical cooling across liquid and air: design, manufacturing, delivery, and field service.

  • Air-cooled chiller modules, piped and tested in the plant.
  • A backed-up mechanical feed keeps cooling riding through with the IT load.

Credential

50+ years of HVAC and cooling delivery.

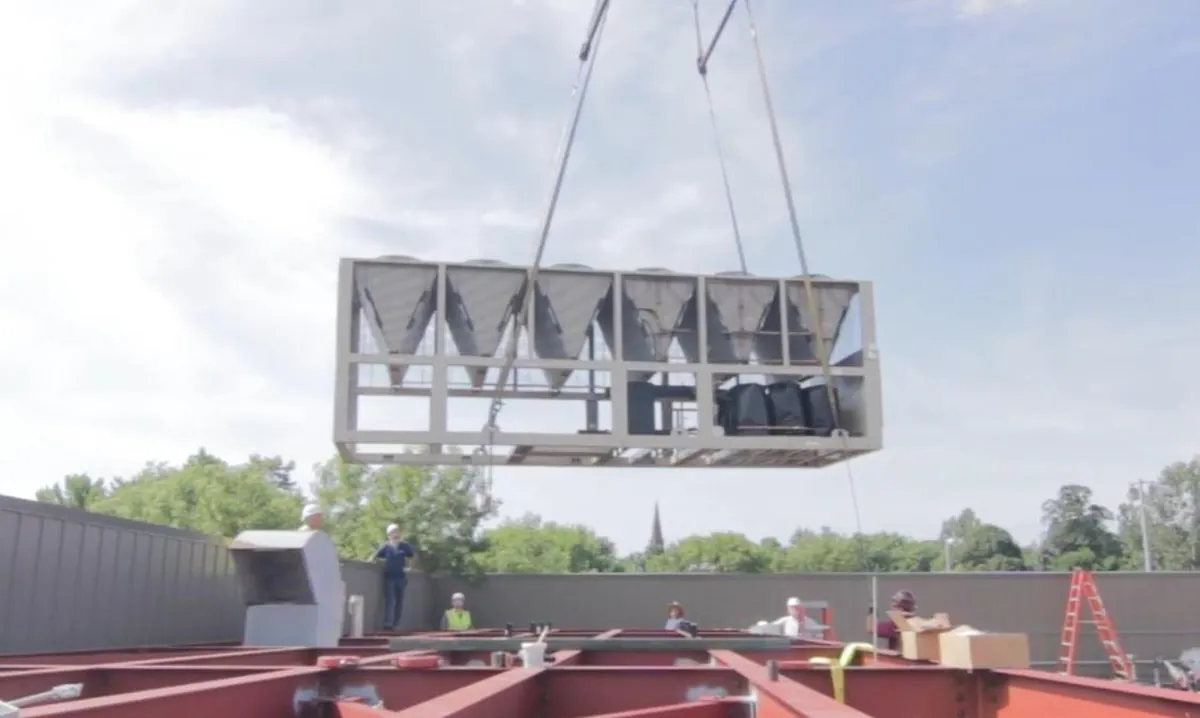

Air-cooled chiller module craned onto structural steel
A chiller module sets onto its steel.

Engineered once, built and commissioned in the factory, then repeated on every 5 MW lane of the campus.
